How to improve knock detection?

Post by knockretard » 29 Apr 2023 12:44

Hello, I have setup knock shield using https://github.com/Bylund/Knock-Shield- ... xample.ino

It was easy to do because your manual is very good.

Only thing I changed to suit my engine was the Setting band pass frequency

I have a V8 with 102.3mm diameter pistons so I used this calculator: https://phormula.com/knock-frequency-calculator/ to get a frequency of 5.6khz

According to the Technical Manual (http://www.bylund-automotive.com/educat ... Shield.pdf)

the closest value is: 5.68 kHz 0x24 0b00100100

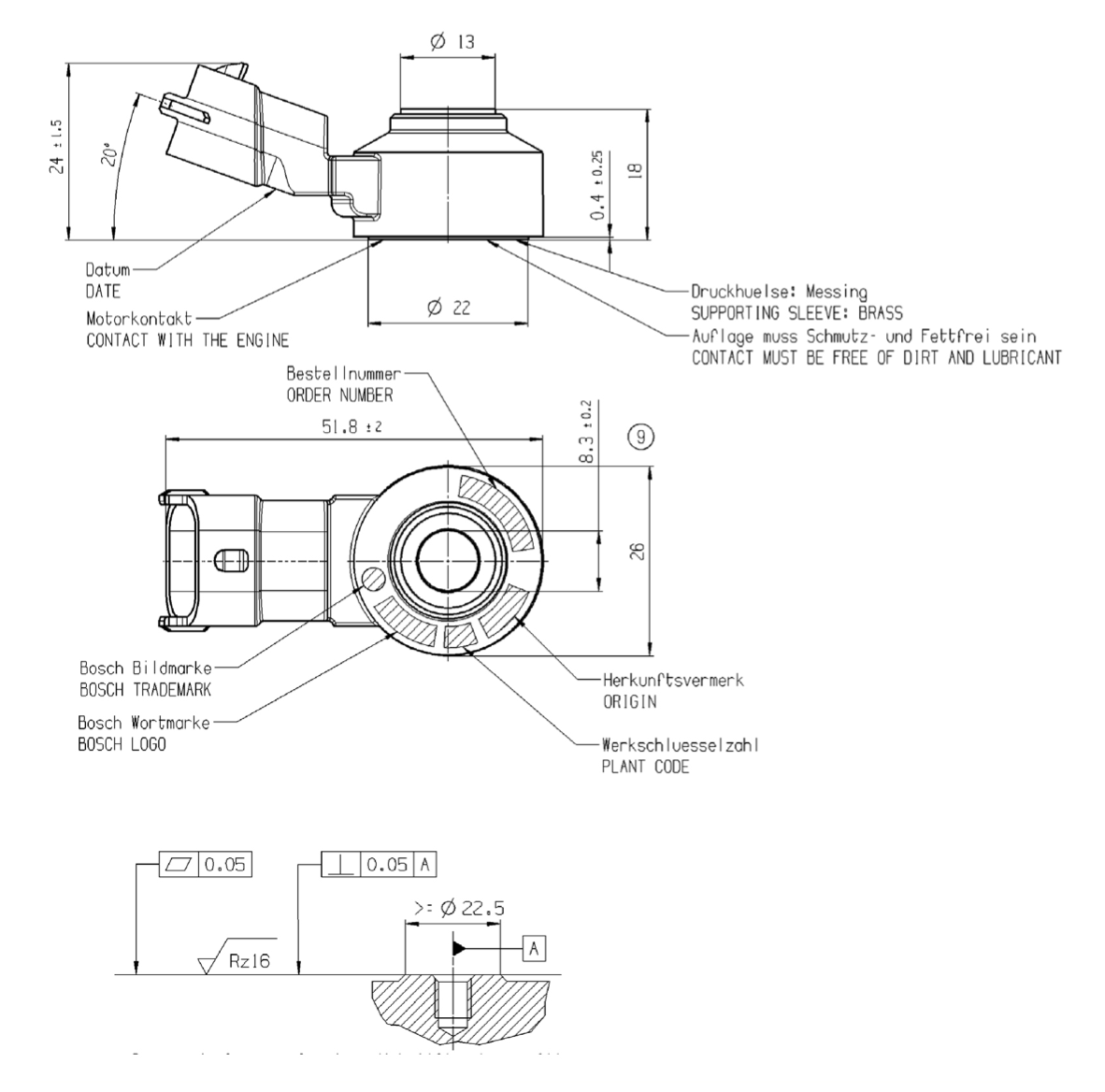

Here is a sample of my log. I am using 2 knock sensors Bosch KS4-P. I just did some light driving. I have conservative timing and high octane fuel.
Question 1: Does this look correct? I'm a little surprised that results aren't consistent between both sensors. On this V8 they are mounted on the outside of the iron block, one on each side of the v8.
Question 2: how do I know whether I should adjust the gain or KNOCK_THRESHOLD_LEVEL?

Code: Select all

Device reset.
Configuring SPU: 0x44, 0x24, 0xA2, 0xCA
Channel 1:  6% - Channel 2:  5%
Channel 1: 33% - Channel 2:  7%
Channel 1: 13% - Channel 2:  6%
Channel 1:  5% - Channel 2:  5%
Channel 1: 44% - Channel 2:  8%
Channel 1: 21% - Channel 2: 10%
Channel 1:  5% - Channel 2:  7%
Channel 1: 48% - Channel 2:  7%
Channel 1: 11% - Channel 2: 10%
Channel 1: 14% - Channel 2:  5%
Channel 1: 12% - Channel 2:  8%
Channel 1:  6% - Channel 2:  5%
Channel 1: 16% - Channel 2:  6%
Channel 1:  7% - Channel 2:  6%
Channel 1: 40% - Channel 2: 12%
Channel 1: 29% - Channel 2:  7%
Channel 1:  6% - Channel 2:  5%
Channel 1: 12% - Channel 2:  6%
Channel 1: 12% - Channel 2:  5%
Channel 1:  5% - Channel 2:  6%
Channel 1:  7% - Channel 2:  6%
Channel 1: 11% - Channel 2:  5%
Channel 1: 10% - Channel 2:  8%
Channel 1:  5% - Channel 2:  5%
Channel 1:  6% - Channel 2:  4%
Channel 1:  4% - Channel 2:  4%
Channel 1:  6% - Channel 2:  4%
Channel 1: 25% - Channel 2:  6%
Channel 1:  9% - Channel 2:  6%
Channel 1:  7% - Channel 2:  6%
Channel 1: 15% - Channel 2:  4%
Channel 1:  5% - Channel 2:  4%
Channel 1:  5% - Channel 2:  5%
Channel 1:  9% - Channel 2:  5%
Channel 1:  5% - Channel 2:  5%
Channel 1: 27% - Channel 2:  8%
Channel 1:  9% - Channel 2:  7%
Channel 1:  9% - Channel 2:  7%
Channel 1: 14% - Channel 2:  6%
Channel 1: 55% - Channel 2:  7%
Channel 1: 10% - Channel 2:  6%
Channel 1: 13% - Channel 2:  6%
Channel 1:  5% - Channel 2:  4%
Channel 1: 14% - Channel 2:  6%
Channel 1:  7% - Channel 2:  5%
Channel 1: 22% - Channel 2:  6%
Channel 1: 10% - Channel 2:  5%
Channel 1: 51% - Channel 2:  8%
Channel 1: 11% - Channel 2: 10%
Channel 1:  9% - Channel 2:  5%
Channel 1: 11% - Channel 2:  6%
Channel 1:  8% - Channel 2:  6%
Channel 1: 36% - Channel 2: 20%
Channel 1:  5% - Channel 2:  6%
Channel 1:  5% - Channel 2: 12%
Channel 1: 35% - Channel 2:  7%
Channel 1: 14% - Channel 2:  8%
Channel 1:  7% - Channel 2:  6%
Channel 1: 13% - Channel 2:  7%
Channel 1: 51% - Channel 2:  9%
Channel 1: 14% - Channel 2:  7%
Channel 1: 16% - Channel 2: 11%
Channel 1:  6% - Channel 2:  5%
Channel 1: 15% - Channel 2:  7%
Channel 1:  6% - Channel 2:  4%
Channel 1:  6% - Channel 2:  6%
Channel 1:  5% - Channel 2:  7%
Channel 1:  6% - Channel 2:  6%
Channel 1:  5% - Channel 2:  6%
Channel 1:  6% - Channel 2:  5%
Channel 1:  5% - Channel 2:  6%
Channel 1: 10% - Channel 2:  7%
Channel 1: 32% - Channel 2:  6%
Channel 1: 10% - Channel 2:  5%
Channel 1: 12% - Channel 2:  6%
Channel 1: 27% - Channel 2:  6%
Channel 1: 48% - Channel 2:  6%
Channel 1:  5% - Channel 2:  7%
Channel 1: 42% - Channel 2:  7%
Channel 1: 27% - Channel 2:  8%
Channel 1: 25% - Channel 2:  6%
Channel 1:  6% - Channel 2:  7%
Channel 1: 47% - Channel 2:  5%
Channel 1: 10% - Channel 2:  6%
Channel 1: 14% - Channel 2:  6%
Channel 1: 31% - Channel 2:  7%
Channel 1: 10% - Channel 2:  8%
Channel 1: 10% - Channel 2:  6%
Channel 1:  8% - Channel 2:  7%
Channel 1:  6% - Channel 2:  7%
Channel 1: 15% - Channel 2:  6%
Channel 1:  6% - Channel 2:  8%
Channel 1: 10% - Channel 2:  6%
Channel 1: 16% - Channel 2:  6%
Channel 1: 13% - Channel 2:  5%
Channel 1:  8% - Channel 2:  7%
Channel 1: 21% - Channel 2:  5%
Channel 1:  6% - Channel 2:  5%
Channel 1:  6% - Channel 2:  7%
Channel 1: 16% - Channel 2:  7%
Channel 1: 21% - Channel 2:  8%
Channel 1:  7% - Channel 2:  7%
Channel 1: 12% - Channel 2:  6%
Channel 1: 25% - Channel 2: 10%
Channel 1: 13% - Channel 2:  6%
Channel 1: 45% - Channel 2: 13%
Channel 1: 15% - Channel 2: 15%
Channel 1: 18% - Channel 2:  9%
Channel 1: 14% - Channel 2: 12%
Channel 1: 16% - Channel 2: 23%
Channel 1: 21% - Channel 2: 21%
Channel 1: 48% - Channel 2: 12%
Channel 1: 24% - Channel 2: 13%
Channel 1: 21% - Channel 2: 13%
Channel 1: 58% - Channel 2: 12%
Channel 1: 38% - Channel 2:  9%
Channel 1: 20% - Channel 2: 11%
Channel 1: 18% - Channel 2: 18%
Channel 1: 22% - Channel 2: 15%
Channel 1: 42% - Channel 2: 17%
Channel 1: 57% - Channel 2: 37%
Channel 1: 63% - Channel 2: 25%
Channel 1: 43% - Channel 2: 22%
Channel 1: 24% - Channel 2: 19%
Channel 1: 19% - Channel 2: 36%
Channel 1: 52% - Channel 2: 20%
Channel 1: 61% - Channel 2: 16%
Channel 1: 69% - Channel 2: 30%
Channel 1: 37% - Channel 2: 33%
Channel 1: 30% - Channel 2: 29%
Channel 1: 21% - Channel 2: 15%
Channel 1: 46% - Channel 2: 21%
Channel 1: 64% - Channel 2: 16%
Channel 1: 46% - Channel 2: 11%
Channel 1: 31% - Channel 2: 24%
Channel 1: 60% - Channel 2: 11%
Channel 1: 40% - Channel 2: 26%
Channel 1: 37% - Channel 2: 16%
Channel 1: 16% - Channel 2: 16%
Channel 1: 45% - Channel 2: 10%
Channel 1: 15% - Channel 2: 11%
Channel 1: 33% - Channel 2: 15%
Channel 1: 54% - Channel 2: 13%
Channel 1: 20% - Channel 2: 11%
Channel 1: 16% - Channel 2: 11%
Channel 1: 26% - Channel 2: 13%
Channel 1: 16% - Channel 2: 17%
Channel 1: 16% - Channel 2:  9%
Channel 1: 24% - Channel 2: 10%
Channel 1: 11% - Channel 2: 11%
Channel 1: 17% - Channel 2: 22%
Channel 1: 32% - Channel 2: 11%
Channel 1: 17% - Channel 2: 11%
Channel 1: 30% - Channel 2: 23%
Channel 1: 17% - Channel 2: 13%
Channel 1: 16% - Channel 2: 10%
Channel 1: 19% - Channel 2: 19%
Channel 1: 24% - Channel 2: 15%
Channel 1: 49% - Channel 2: 12%
Channel 1: 15% - Channel 2: 11%
Channel 1: 39% - Channel 2: 10%
Channel 1: 19% - Channel 2:  9%
Channel 1: 14% - Channel 2: 32%
Channel 1: 17% - Channel 2: 12%
Channel 1: 47% - Channel 2: 15%
Channel 1: 19% - Channel 2: 13%
Channel 1: 45% - Channel 2: 19%
Channel 1: 55% - Channel 2: 11%
Channel 1: 43% - Channel 2: 12%
Channel 1: 39% - Channel 2: 25%
Channel 1: 61% - Channel 2: 21%
Channel 1: 43% - Channel 2: 10%
Channel 1: 37% - Channel 2: 10%
Channel 1: 19% - Channel 2: 12%
Channel 1: 18% - Channel 2: 32%
Channel 1: 19% - Channel 2:  9%
Channel 1: 39% - Channel 2:  8%
Channel 1: 45% - Channel 2: 11%
Channel 1: 18% - Channel 2: 10%
Channel 1: 17% - Channel 2: 11%
Channel 1: 60% - Channel 2: 16%
Channel 1: 52% - Channel 2: 16%
Channel 1: 19% - Channel 2: 20%
Channel 1: 21% - Channel 2: 13%
Channel 1: 24% - Channel 2: 11%
Channel 1: 31% - Channel 2: 20%
Channel 1: 27% - Channel 2: 17%
Channel 1: 18% - Channel 2: 11%
Channel 1: 51% - Channel 2: 11%
Channel 1: 35% - Channel 2: 15%
Channel 1: 22% - Channel 2: 14%
Channel 1: 60% - Channel 2: 15%
Channel 1: 14% - Channel 2: 12%
Channel 1: 62% - Channel 2: 19%
Channel 1: 24% - Channel 2: 10%
Channel 1: 29% - Channel 2: 18%
Channel 1: 44% - Channel 2: 11%
Channel 1: 16% - Channel 2: 13%
Channel 1: 17% - Channel 2: 12%
Channel 1: 23% - Channel 2: 15%
Channel 1: 61% - Channel 2: 18%
Channel 1: 29% - Channel 2: 26%
Channel 1: 52% - Channel 2: 13%
Channel 1: 17% - Channel 2: 13%
Channel 1: 32% - Channel 2:  9%
Channel 1: 38% - Channel 2: 10%
Channel 1: 60% - Channel 2: 11%
Channel 1: 21% - Channel 2: 18%
Channel 1: 53% - Channel 2: 27%
Channel 1: 21% - Channel 2:  9%
Channel 1: 61% - Channel 2: 29%
Channel 1: 17% - Channel 2: 19%
Channel 1: 17% - Channel 2: 17%
Channel 1: 28% - Channel 2: 16%
Channel 1: 37% - Channel 2: 16%
Channel 1: 17% - Channel 2:  8%
Channel 1: 18% - Channel 2: 30%
Channel 1: 32% - Channel 2: 14%
Channel 1: 14% - Channel 2: 12%
Channel 1: 41% - Channel 2: 10%
Channel 1: 15% - Channel 2: 16%
Channel 1: 32% - Channel 2: 13%
Channel 1: 24% - Channel 2: 17%
Channel 1: 14% - Channel 2:  9%
Channel 1: 18% - Channel 2: 16%
Channel 1: 68% - Channel 2: 12%
Channel 1: 35% - Channel 2: 13%
Channel 1: 29% - Channel 2: 18%
Channel 1: 28% - Channel 2: 15%
Channel 1: 22% - Channel 2: 12%
Channel 1: 22% - Channel 2: 23%
Channel 1: 25% - Channel 2: 18%
Channel 1: 15% - Channel 2: 10%
Channel 1: 17% - Channel 2: 19%
Channel 1: 37% - Channel 2: 12%
Channel 1: 30% - Channel 2:  9%
Channel 1: 31% - Channel 2: 22%
Channel 1: 15% - Channel 2: 21%
Channel 1: 16% - Channel 2: 12%
Channel 1: 35% - Channel 2:  8%
Channel 1: 14% - Channel 2: 12%
Channel 1: 16% - Channel 2: 24%
Channel 1: 37% - Channel 2: 14%
Channel 1: 13% - Channel 2: 10%
Channel 1: 28% - Channel 2:  8%
Channel 1: 12% - Channel 2:  7%
Channel 1: 35% - Channel 2: 16%
Channel 1: 30% - Channel 2:  8%
Channel 1: 12% - Channel 2:  8%
Channel 1: 13% - Channel 2:  7%
Channel 1: 12% - Channel 2:  9%
Channel 1: 49% - Channel 2: 11%
Channel 1: 14% - Channel 2:  9%
Channel 1: 20% - Channel 2:  8%
Channel 1: 14% - Channel 2:  6%
Channel 1: 38% - Channel 2:  8%
Channel 1: 30% - Channel 2: 11%
Channel 1: 17% - Channel 2:  8%
Channel 1: 37% - Channel 2: 11%
Channel 1: 14% - Channel 2:  6%
Channel 1: 16% - Channel 2: 11%
Channel 1:  6% - Channel 2:  8%
Channel 1: 15% - Channel 2:  9%
Channel 1:  7% - Channel 2:  8%
Channel 1: 51% - Channel 2: 11%
Channel 1:  8% - Channel 2:  7%
Channel 1: 19% - Channel 2:  7%
Channel 1: 16% - Channel 2:  6%
Channel 1:  6% - Channel 2: 27%
Channel 1: 12% - Channel 2: 13%
Channel 1: 17% - Channel 2:  8%
Channel 1:  8% - Channel 2:  5%
Channel 1: 17% - Channel 2:  6%
Channel 1: 11% - Channel 2:  7%
Channel 1:  8% - Channel 2:  6%
Channel 1:  7% - Channel 2:  7%
Channel 1: 14% - Channel 2:  7%
Channel 1: 49% - Channel 2:  8%
Channel 1: 63% - Channel 2:  9%
Channel 1: 64% - Channel 2: 12%
Channel 1: 11% - Channel 2:  6%
Channel 1:  7% - Channel 2:  7%
Channel 1: 30% - Channel 2:  7%
Channel 1:  6% - Channel 2:  7%
Channel 1: 30% - Channel 2: 10%
Channel 1:  7% - Channel 2:  5%
Channel 1:  6% - Channel 2:  5%
Channel 1: 13% - Channel 2:  8%
Channel 1: 14% - Channel 2:  8%
Channel 1: 17% - Channel 2:  9%
Channel 1:  8% - Channel 2:  7%
Channel 1:  8% - Channel 2: 19%
Channel 1: 17% - Channel 2:  7%
Channel 1: 33% - Channel 2: 12%
Channel 1: 28% - Channel 2:  7%
Channel 1: 17% - Channel 2:  9%
Channel 1:  6% - Channel 2:  6%
Channel 1: 51% - Channel 2:  9%
Channel 1: 10% - Channel 2:  5%
Channel 1: 23% - Channel 2:  9%
Channel 1: 49% - Channel 2:  5%
Channel 1:  5% - Channel 2:  6%
Channel 1: 10% - Channel 2: 12%
Channel 1: 52% - Channel 2:  7%
Channel 1:  5% - Channel 2:  5%
Channel 1:  8% - Channel 2:  6%
Channel 1: 12% - Channel 2:  7%
Channel 1:  8% - Channel 2:  5%
Channel 1:  6% - Channel 2:  7%
Channel 1: 10% - Channel 2:  5%
Channel 1: 11% - Channel 2:  6%
Channel 1: 11% - Channel 2:  6%
Channel 1: 17% - Channel 2:  6%
Channel 1: 13% - Channel 2:  6%
Channel 1:  8% - Channel 2:  5%
Channel 1: 17% - Channel 2:  7%
Channel 1:  9% - Channel 2:  7%
Channel 1: 66% - Channel 2:  9%
Channel 1: 11% - Channel 2:  6%
Channel 1: 11% - Channel 2:  5%
Channel 1:  6% - Channel 2:  6%
Channel 1: 10% - Channel 2:  6%
Channel 1: 57% - Channel 2:  7%
Channel 1: 17% - Channel 2:  6%
Channel 1:  5% - Channel 2:  6%
Channel 1:  6% - Channel 2:  5%
Channel 1:  5% - Channel 2:  5%
Channel 1:  7% - Channel 2:  6%
Channel 1: 10% - Channel 2:  6%
Channel 1: 10% - Channel 2:  9%
Channel 1: 54% - Channel 2:  8%
Channel 1:  6% - Channel 2:  5%
Channel 1: 15% - Channel 2:  5%
Channel 1: 13% - Channel 2:  6%
Channel 1: 58% - Channel 2: 10%
Channel 1: 16% - Channel 2: 18%
Channel 1: 25% - Channel 2:  7%
Channel 1: 45% - Channel 2:  7%
Channel 1:  5% - Channel 2:  6%
Channel 1: 13% - Channel 2: 12%
Channel 1: 12% - Channel 2:  8%
Channel 1: 51% - Channel 2:  7%
Channel 1:  7% - Channel 2:  7%
Channel 1: 16% - Channel 2:  7%
Channel 1: 15% - Channel 2:  5%
Channel 1: 57% - Channel 2:  8%
Channel 1:  7% - Channel 2:  5%
Channel 1: 15% - Channel 2:  5%
Channel 1: 54% - Channel 2: 10%
Channel 1: 57% - Channel 2:  6%
Channel 1:  4% - Channel 2:  6%
Channel 1: 11% - Channel 2:  7%
Channel 1: 11% - Channel 2:  5%
Channel 1: 32% - Channel 2:  7%
Channel 1: 65% - Channel 2:  6%
Channel 1: 10% - Channel 2:  8%
Channel 1:  5% - Channel 2:  5%
Channel 1: 10% - Channel 2:  6%
Channel 1: 10% - Channel 2:  5%
Channel 1: 10% - Channel 2:  6%
Channel 1: 38% - Channel 2: 15%
Channel 1:  5% - Channel 2: 11%
Channel 1: 53% - Channel 2:  9%
Channel 1: 10% - Channel 2:  9%
Channel 1: 16% - Channel 2:  7%
Channel 1: 12% - Channel 2:  9%
Channel 1:  6% - Channel 2:  5%
Channel 1: 14% - Channel 2:  5%
Channel 1:  9% - Channel 2:  7%
Channel 1: 16% - Channel 2: 11%
Channel 1: 10% - Channel 2: 24%
Channel 1: 42% - Channel 2: 11%
Channel 1: 35% - Channel 2: 29%
Channel 1: 51% - Channel 2: 24%
Channel 1: 70% - Channel 2: 38%
Channel 1: 71% - Channel 2: 27%
Channel 1: 63% - Channel 2: 31%
Channel 1: 71% - Channel 2: 37%
Channel 1: 65% - Channel 2: 99%
Channel 1: 53% - Channel 2: 57%
Channel 1: 58% - Channel 2: 37%
Channel 1: 43% - Channel 2: 16%
Channel 1: 14% - Channel 2: 14%
Channel 1: 15% - Channel 2: 11%
Channel 1: 57% - Channel 2:  9%
Channel 1: 17% - Channel 2: 12%
Channel 1: 49% - Channel 2: 12%
Channel 1: 43% - Channel 2: 15%
Channel 1: 57% - Channel 2: 12%
Channel 1: 29% - Channel 2:  7%
Channel 1: 49% - Channel 2: 18%
Channel 1: 36% - Channel 2:  7%
Channel 1: 42% - Channel 2:  9%
Channel 1: 17% - Channel 2:  7%
Channel 1: 36% - Channel 2: 10%
Channel 1: 18% - Channel 2: 20%
Channel 1: 15% - Channel 2: 18%
Channel 1: 33% - Channel 2: 10%
Channel 1: 51% - Channel 2: 13%
Channel 1: 52% - Channel 2:  9%
Channel 1: 17% - Channel 2: 10%
Channel 1: 54% - Channel 2: 14%
Channel 1: 15% - Channel 2:  9%
Channel 1: 19% - Channel 2: 14%
Channel 1: 33% - Channel 2:  9%
Channel 1: 37% - Channel 2: 14%
Channel 1: 24% - Channel 2: 10%
Channel 1: 63% - Channel 2: 11%
Channel 1: 17% - Channel 2: 15%
Channel 1: 48% - Channel 2: 13%
Channel 1: 20% - Channel 2: 27%
Channel 1: 51% - Channel 2: 12%
Channel 1: 17% - Channel 2: 18%
Channel 1: 17% - Channel 2: 11%
Channel 1: 19% - Channel 2: 16%
Channel 1: 28% - Channel 2: 16%
Channel 1: 62% - Channel 2: 15%
Channel 1: 50% - Channel 2: 15%
Channel 1: 21% - Channel 2: 12%
Channel 1: 20% - Channel 2: 16%
Channel 1: 18% - Channel 2: 22%
Channel 1: 32% - Channel 2: 10%
Channel 1: 65% - Channel 2: 13%
Channel 1: 21% - Channel 2: 12%
Channel 1: 16% - Channel 2: 15%
Channel 1: 56% - Channel 2: 18%
Channel 1: 34% - Channel 2: 13%
Channel 1: 18% - Channel 2: 10%
Channel 1: 16% - Channel 2: 12%
Channel 1: 41% - Channel 2:  9%
Channel 1: 31% - Channel 2: 14%
Channel 1: 13% - Channel 2: 12%
Channel 1: 12% - Channel 2: 15%
Channel 1: 18% - Channel 2: 24%
Channel 1: 18% - Channel 2:  8%
Channel 1: 16% - Channel 2:  9%
Channel 1: 36% - Channel 2: 12%
Channel 1: 11% - Channel 2:  8%
Channel 1: 29% - Channel 2:  7%
Channel 1: 31% - Channel 2: 16%
Channel 1: 12% - Channel 2:  7%
Channel 1: 13% - Channel 2:  8%
Channel 1: 13% - Channel 2: 18%
Channel 1: 13% - Channel 2:  6%
Channel 1: 12% - Channel 2:  9%
Channel 1: 39% - Channel 2:  9%
Channel 1: 29% - Channel 2: 13%
Channel 1: 17% - Channel 2:  8%
Channel 1: 10% - Channel 2:  7%
Channel 1: 17% - Channel 2: 13%
Channel 1: 16% - Channel 2: 13%
Channel 1: 13% - Channel 2: 12%
Channel 1: 12% - Channel 2: 11%
Channel 1: 29% - Channel 2:  9%
Channel 1: 55% - Channel 2: 13%
Channel 1: 16% - Channel 2:  8%
Channel 1: 18% - Channel 2: 13%
Channel 1: 43% - Channel 2:  9%
Channel 1: 17% - Channel 2:  9%
Channel 1: 54% - Channel 2:  9%
Channel 1: 17% - Channel 2: 13%
Channel 1: 13% - Channel 2:  8%
Channel 1: 40% - Channel 2: 12%
Channel 1: 12% - Channel 2:  8%
Channel 1:  9% - Channel 2:  9%
Channel 1: 19% - Channel 2: 11%
Channel 1: 17% - Channel 2: 13%
Channel 1: 58% - Channel 2: 13%
Channel 1: 37% - Channel 2: 14%
Channel 1: 13% - Channel 2: 10%
Channel 1: 13% - Channel 2:  8%
Channel 1: 12% - Channel 2:  6%
Channel 1: 62% - Channel 2: 11%
Channel 1: 45% - Channel 2:  9%
Channel 1: 15% - Channel 2:  6%
Channel 1: 38% - Channel 2:  8%
Channel 1: 56% - Channel 2: 12%
Channel 1: 16% - Channel 2: 10%
Channel 1: 27% - Channel 2:  7%
Channel 1: 14% - Channel 2:  8%
Channel 1: 19% - Channel 2:  9%
Channel 1: 16% - Channel 2: 10%
Channel 1: 60% - Channel 2:  9%
Channel 1: 22% - Channel 2:  9%
Channel 1: 28% - Channel 2:  9%
Channel 1: 18% - Channel 2: 13%
Channel 1: 63% - Channel 2: 16%
Channel 1: 56% - Channel 2: 11%
Channel 1: 36% - Channel 2: 11%
Channel 1: 17% - Channel 2: 12%
Channel 1: 15% - Channel 2: 12%
Channel 1: 53% - Channel 2: 14%
Channel 1: 30% - Channel 2: 26%
Channel 1: 20% - Channel 2: 10%
Channel 1: 38% - Channel 2: 14%
Channel 1: 16% - Channel 2: 13%
Channel 1: 50% - Channel 2: 11%
Channel 1: 26% - Channel 2: 10%
Channel 1: 74% - Channel 2: 12%
Channel 1: 13% - Channel 2:  9%
Channel 1: 42% - Channel 2: 12%
Channel 1: 15% - Channel 2: 20%
Channel 1: 64% - Channel 2: 19%
Channel 1: 45% - Channel 2: 10%
Channel 1: 15% - Channel 2: 11%
Channel 1: 72% - Channel 2: 12%
Channel 1: 30% - Channel 2: 11%
Channel 1: 22% - Channel 2: 11%
Channel 1: 12% - Channel 2: 19%
Channel 1: 55% - Channel 2: 29%
Channel 1: 18% - Channel 2: 10%
Channel 1: 40% - Channel 2: 10%
Channel 1: 15% - Channel 2: 10%
Channel 1: 15% - Channel 2: 19%
Channel 1: 55% - Channel 2: 18%
Channel 1: 32% - Channel 2: 21%
Channel 1: 13% - Channel 2: 11%
Channel 1: 15% - Channel 2: 17%
Channel 1: 15% - Channel 2: 10%
Channel 1: 32% - Channel 2: 14%
Channel 1: 41% - Channel 2: 14%
Channel 1: 32% - Channel 2: 11%
Channel 1: 38% - Channel 2: 13%
Channel 1: 56% - Channel 2: 11%
Channel 1: 41% - Channel 2:  9%
Channel 1: 15% - Channel 2: 10%
Channel 1: 19% - Channel 2:  9%
Channel 1: 19% - Channel 2: 13%
Channel 1: 16% - Channel 2: 18%
Channel 1: 65% - Channel 2: 24%
Channel 1: 26% - Channel 2: 11%
Channel 1: 64% - Channel 2: 11%
Channel 1: 60% - Channel 2: 13%
Channel 1: 53% - Channel 2: 13%
Channel 1: 23% - Channel 2: 19%
Channel 1: 14% - Channel 2: 12%
Channel 1: 14% - Channel 2: 17%
Channel 1: 20% - Channel 2:  9%
Channel 1: 36% - Channel 2: 22%
Channel 1: 13% - Channel 2: 10%
Channel 1: 33% - Channel 2: 12%
Channel 1: 65% - Channel 2: 11%
Channel 1: 16% - Channel 2: 15%
Channel 1: 64% - Channel 2: 10%
Channel 1: 15% - Channel 2:  9%
Channel 1: 17% - Channel 2:  9%
Channel 1: 33% - Channel 2:  7%
Channel 1:  8% - Channel 2: 11%
Channel 1: 17% - Channel 2:  9%
Channel 1: 27% - Channel 2:  8%
Channel 1:  6% - Channel 2:  7%
Channel 1: 65% - Channel 2: 14%
Channel 1: 55% - Channel 2:  8%
Channel 1: 16% - Channel 2: 12%
Channel 1: 15% - Channel 2:  7%
Channel 1: 12% - Channel 2: 11%
Channel 1: 44% - Channel 2: 10%
Channel 1: 14% - Channel 2:  8%
Channel 1: 12% - Channel 2: 16%
Channel 1: 14% - Channel 2:  8%
Channel 1: 14% - Channel 2:  9%
Channel 1:  8% - Channel 2:  6%
Channel 1: 37% - Channel 2:  8%
Channel 1: 16% - Channel 2: 23%
Channel 1: 13% - Channel 2:  8%
Channel 1: 35% - Channel 2:  9%
Channel 1: 13% - Channel 2:  5%
Channel 1:  7% - Channel 2:  7%
Channel 1: 12% - Channel 2:  9%
Channel 1:  8% - Channel 2:  8%
Channel 1: 16% - Channel 2: 12%
Channel 1:  7% - Channel 2:  7%
Channel 1: 13% - Channel 2: 14%
Channel 1: 11% - Channel 2:  6%
Channel 1: 16% - Channel 2:  7%
Channel 1: 17% - Channel 2:  6%
Channel 1: 35% - Channel 2:  9%
Channel 1: 58% - Channel 2: 11%
Channel 1:  8% - Channel 2:  8%
Channel 1: 33% - Channel 2:  7%
Channel 1:  7% - Channel 2:  7%
Channel 1: 16% - Channel 2:  6%
Channel 1: 47% - Channel 2: 15%
Channel 1: 26% - Channel 2: 12%
Channel 1: 11% - Channel 2: 11%
Channel 1: 10% - Channel 2:  6%
Channel 1: 17% - Channel 2: 14%
Channel 1: 56% - Channel 2: 10%
Channel 1: 15% - Channel 2:  7%
Channel 1: 10% - Channel 2:  8%
Channel 1:  7% - Channel 2:  5%
Channel 1: 34% - Channel 2:  7%
Channel 1:  6% - Channel 2:  5%
Channel 1:  8% - Channel 2:  5%
Channel 1: 14% - Channel 2:  6%
Channel 1: 16% - Channel 2:  5%
Channel 1: 43% - Channel 2: 13%
Channel 1:  4% - Channel 2: 12%
Channel 1: 36% - Channel 2:  6%
Channel 1:  7% - Channel 2:  7%
Channel 1: 13% - Channel 2:  5%
Channel 1: 11% - Channel 2:  6%
Channel 1: 12% - Channel 2: 11%
Channel 1: 11% - Channel 2:  6%
Channel 1: 12% - Channel 2:  9%
Channel 1: 35% - Channel 2:  7%
Channel 1: 12% - Channel 2:  9%
Channel 1: 38% - Channel 2:  6%
Channel 1: 13% - Channel 2:  9%
Channel 1: 56% - Channel 2:  8%
Channel 1: 20% - Channel 2: 12%
Channel 1: 20% - Channel 2:  8%
Channel 1:  6% - Channel 2:  6%
Channel 1:  7% - Channel 2:  8%
Channel 1: 10% - Channel 2: 10%
Channel 1: 29% - Channel 2: 25%
Channel 1: 30% - Channel 2:  9%
Channel 1: 56% - Channel 2:  7%
Channel 1: 13% - Channel 2:  7%
Channel 1:  5% - Channel 2:  8%
Channel 1: 23% - Channel 2:  6%
Channel 1: 15% - Channel 2:  7%
Channel 1:  5% - Channel 2:  5%
Channel 1: 40% - Channel 2: 12%
Channel 1: 10% - Channel 2: 10%
Channel 1: 10% - Channel 2:  6%
Channel 1: 16% - Channel 2:  7%
Channel 1: 13% - Channel 2:  8%
Channel 1: 57% - Channel 2:  6%
Channel 1:  8% - Channel 2:  8%
Channel 1:  9% - Channel 2:  5%
Channel 1: 11% - Channel 2:  7%
Channel 1:  5% - Channel 2:  5%
Channel 1:  6% - Channel 2:  6%
Channel 1: 30% - Channel 2:  7%
Channel 1: 26% - Channel 2:  8%
Channel 1:  6% - Channel 2:  5%
Channel 1: 26% - Channel 2: 10%
Channel 1: 31% - Channel 2: 28%
Channel 1: 17% - Channel 2:  6%
Channel 1:  5% - Channel 2:  6%
Channel 1:  5% - Channel 2:  5%
Channel 1:  7% - Channel 2:  5%
Channel 1: 49% - Channel 2:  9%
Channel 1:  5% - Channel 2:  6%
Channel 1:  7% - Channel 2:  7%
Channel 1: 13% - Channel 2:  5%
Channel 1: 54% - Channel 2:  6%
Channel 1: 10% - Channel 2:  7%
Channel 1: 53% - Channel 2:  9%
Channel 1: 23% - Channel 2: 14%
Channel 1: 32% - Channel 2: 21%
Channel 1: 58% - Channel 2: 19%
Channel 1: 73% - Channel 2: 30%
Channel 1: 59% - Channel 2: 99%
Channel 1: 99% - Channel 2: 99%
Channel 1: 89% - Channel 2: 63%
Channel 1: 65% - Channel 2: 65%
Channel 1: 53% - Channel 2: 90%
Channel 1: 68% - Channel 2: 47%
Channel 1: 17% - Channel 2: 10%
Channel 1: 14% - Channel 2: 12%
Channel 1: 23% - Channel 2: 28%
Channel 1:  8% - Channel 2:  9%
Channel 1: 29% - Channel 2: 26%
Channel 1: 27% - Channel 2:  9%
Channel 1: 15% - Channel 2:  7%
Channel 1: 53% - Channel 2: 10%
Channel 1: 17% - Channel 2:  8%
Channel 1: 12% - Channel 2: 11%
Channel 1: 31% - Channel 2: 12%
Channel 1: 18% - Channel 2:  8%
Channel 1: 61% - Channel 2: 13%
Channel 1: 22% - Channel 2: 11%
Channel 1: 16% - Channel 2: 11%
Channel 1: 23% - Channel 2: 10%
Channel 1: 20% - Channel 2: 17%
Channel 1: 20% - Channel 2: 10%
Channel 1: 15% - Channel 2: 17%
Channel 1: 24% - Channel 2:  9%
Channel 1: 32% - Channel 2: 14%
Channel 1: 63% - Channel 2: 15%
Channel 1: 41% - Channel 2: 11%
Channel 1: 22% - Channel 2: 11%
Channel 1: 63% - Channel 2: 10%
Channel 1: 63% - Channel 2: 15%
Channel 1: 48% - Channel 2: 13%
Channel 1: 19% - Channel 2: 13%
Channel 1: 53% - Channel 2: 18%
Channel 1: 20% - Channel 2: 10%
Channel 1: 16% - Channel 2: 15%
Channel 1: 14% - Channel 2: 13%
Channel 1: 54% - Channel 2: 10%
Channel 1: 19% - Channel 2: 10%
Channel 1: 35% - Channel 2: 15%
Channel 1: 16% - Channel 2: 10%
Channel 1: 19% - Channel 2: 20%
Channel 1: 25% - Channel 2: 17%
Channel 1: 18% - Channel 2: 21%
Channel 1: 35% - Channel 2: 11%
Channel 1: 19% - Channel 2:  9%
Channel 1: 42% - Channel 2: 11%
Channel 1: 41% - Channel 2: 11%
Channel 1: 56% - Channel 2: 15%
Channel 1: 56% - Channel 2: 15%
Channel 1: 17% - Channel 2: 10%
Channel 1: 29% - Channel 2: 23%
Channel 1: 18% - Channel 2: 15%
Channel 1: 47% - Channel 2: 12%
Channel 1: 21% - Channel 2: 11%
Channel 1: 30% - Channel 2: 11%
Channel 1: 16% - Channel 2:  7%
Channel 1: 13% - Channel 2:  8%
Channel 1: 55% - Channel 2: 10%
Channel 1: 18% - Channel 2:  7%
Channel 1: 35% - Channel 2: 12%
Channel 1: 17% - Channel 2: 13%
Channel 1: 14% - Channel 2:  8%
Channel 1: 32% - Channel 2:  9%
Channel 1: 59% - Channel 2: 15%
Channel 1: 14% - Channel 2: 13%
Channel 1: 21% - Channel 2: 10%
Channel 1: 19% - Channel 2: 10%
Channel 1: 53% - Channel 2: 11%
Channel 1: 14% - Channel 2:  8%
Channel 1: 26% - Channel 2: 12%
Channel 1: 12% - Channel 2:  8%
Channel 1: 14% - Channel 2: 10%
Channel 1: 13% - Channel 2:  7%
Channel 1: 12% - Channel 2: 30%
Channel 1: 61% - Channel 2: 11%
Channel 1: 53% - Channel 2: 13%
Channel 1: 39% - Channel 2: 21%
Channel 1: 40% - Channel 2: 21%
Channel 1: 52% - Channel 2: 14%
Channel 1: 65% - Channel 2: 11%
Channel 1: 38% - Channel 2: 10%
Channel 1: 13% - Channel 2:  8%
Channel 1: 15% - Channel 2: 11%
Channel 1: 18% - Channel 2:  9%
Channel 1: 16% - Channel 2: 13%
Channel 1: 14% - Channel 2:  8%
Channel 1: 15% - Channel 2: 12%
Channel 1: 32% - Channel 2: 10%
Channel 1: 64% - Channel 2: 10%
Channel 1: 39% - Channel 2:  7%
Channel 1: 38% - Channel 2: 12%
Channel 1: 19% - Channel 2:  9%
Channel 1: 13% - Channel 2:  9%
Channel 1: 44% - Channel 2:  8%
Channel 1: 70% - Channel 2:  8%
Channel 1: 11% - Channel 2: 10%
Channel 1: 11% - Channel 2:  7%
Channel 1:  7% - Channel 2: 19%
Channel 1: 28% - Channel 2:  8%
Channel 1: 18% - Channel 2: 10%
Channel 1: 12% - Channel 2:  8%
Channel 1: 16% - Channel 2:  8%
Channel 1:  8% - Channel 2:  7%
Channel 1: 33% - Channel 2:  9%
Channel 1: 15% - Channel 2:  6%
Channel 1: 63% - Channel 2:  8%
Channel 1: 13% - Channel 2:  7%
Channel 1:  8% - Channel 2:  6%
Channel 1: 12% - Channel 2:  8%
Channel 1:  7% - Channel 2:  6%
Channel 1: 42% - Channel 2: 12%
Channel 1: 14% - Channel 2:  7%
Channel 1: 66% - Channel 2: 10%
Channel 1: 15% - Channel 2:  7%
Channel 1: 12% - Channel 2:  8%
Channel 1: 27% - Channel 2: 12%
Channel 1: 17% - Channel 2: 10%
Channel 1: 58% - Channel 2: 13%
Channel 1: 12% - Channel 2:  6%
Channel 1: 61% - Channel 2: 13%
Channel 1: 36% - Channel 2: 22%
Channel 1: 49% - Channel 2:  8%
Channel 1: 18% - Channel 2: 10%
Channel 1: 56% - Channel 2: 14%
Channel 1: 14% - Channel 2:  9%
Channel 1: 65% - Channel 2:  9%
Channel 1: 14% - Channel 2:  9%
Channel 1: 15% - Channel 2:  8%
Channel 1:  6% - Channel 2:  7%
Channel 1: 39% - Channel 2:  9%
Channel 1: 14% - Channel 2:  7%
Channel 1: 52% - Channel 2: 13%
Channel 1: 17% - Channel 2: 10%
Channel 1: 35% - Channel 2: 11%
Channel 1: 12% - Channel 2:  7%
Channel 1: 10% - Channel 2:  7%
Channel 1: 10% - Channel 2:  6%
Channel 1: 12% - Channel 2:  6%
Channel 1:  8% - Channel 2:  8%
Channel 1: 11% - Channel 2:  7%
Channel 1:  8% - Channel 2:  5%
Channel 1: 60% - Channel 2:  8%
Channel 1: 15% - Channel 2:  6%
Channel 1: 25% - Channel 2:  9%
Channel 1: 33% - Channel 2:  8%
Channel 1: 13% - Channel 2: 10%
Channel 1: 12% - Channel 2: 11%
Channel 1: 15% - Channel 2:  7%
Channel 1: 58% - Channel 2:  8%
Channel 1: 34% - Channel 2:  9%
Channel 1: 12% - Channel 2: 14%
Channel 1: 37% - Channel 2: 18%
Channel 1: 17% - Channel 2: 10%
Channel 1: 34% - Channel 2: 15%
Channel 1: 37% - Channel 2: 11%
Channel 1: 62% - Channel 2: 13%
Channel 1: 53% - Channel 2: 13%
Channel 1: 67% - Channel 2: 14%
Channel 1: 61% - Channel 2: 13%
Channel 1: 44% - Channel 2: 10%
Channel 1: 15% - Channel 2:  9%
Channel 1: 37% - Channel 2:  9%
Channel 1: 17% - Channel 2: 11%
Channel 1: 38% - Channel 2: 15%
Channel 1: 41% - Channel 2: 20%
Channel 1: 30% - Channel 2: 10%
Channel 1: 17% - Channel 2: 18%
Channel 1: 62% - Channel 2: 15%
Channel 1: 12% - Channel 2: 17%
Channel 1: 44% - Channel 2: 13%
Channel 1: 19% - Channel 2: 13%
Channel 1: 18% - Channel 2: 11%
Channel 1: 19% - Channel 2: 11%
Channel 1: 20% - Channel 2: 10%
Channel 1: 16% - Channel 2: 19%
Channel 1: 53% - Channel 2: 19%
Channel 1: 18% - Channel 2: 12%
Channel 1: 34% - Channel 2: 12%
Channel 1: 16% - Channel 2: 12%
Channel 1: 57% - Channel 2: 11%
Channel 1: 18% - Channel 2: 11%
Channel 1: 59% - Channel 2: 15%
Channel 1: 18% - Channel 2: 11%
Channel 1: 55% - Channel 2: 14%
Channel 1: 13% - Channel 2: 12%
Channel 1: 15% - Channel 2:  7%
Channel 1: 14% - Channel 2: 10%
Channel 1: 62% - Channel 2: 17%
Channel 1: 12% - Channel 2:  8%
Channel 1: 54% - Channel 2: 13%
Channel 1: 18% - Channel 2:  9%
Channel 1: 18% - Channel 2: 13%
Channel 1: 15% - Channel 2: 10%
Channel 1: 19% - Channel 2: 14%
Channel 1: 15% - Channel 2: 10%
Channel 1: 16% - Channel 2: 12%
Channel 1: 47% - Channel 2:  9%
Channel 1: 12% - Channel 2: 10%
Channel 1: 12% - Channel 2:  7%
Channel 1: 37% - Channel 2:  8%
Channel 1: 33% - Channel 2:  8%
Channel 1: 33% - Channel 2: 11%
Channel 1: 59% - Channel 2: 14%
Channel 1: 13% - Channel 2:  7%
Channel 1:  9% - Channel 2:  6%
Channel 1: 16% - Channel 2: 15%
Channel 1: 40% - Channel 2:  9%
Channel 1: 15% - Channel 2:  8%
Channel 1: 59% - Channel 2: 10%
Channel 1: 49% - Channel 2:  8%
Channel 1: 13% - Channel 2:  9%
Channel 1: 19% - Channel 2: 20%
Channel 1: 13% - Channel 2:  8%
Channel 1: 14% - Channel 2:  5%
Channel 1: 14% - Channel 2: 11%
Channel 1: 14% - Channel 2: 12%
Channel 1: 12% - Channel 2: 16%
Channel 1: 13% - Channel 2:  7%
Channel 1: 12% - Channel 2:  9%
Channel 1: 54% - Channel 2: 10%
Channel 1: 14% - Channel 2:  7%
Channel 1: 35% - Channel 2: 10%
Channel 1: 13% - Channel 2:  7%
Channel 1: 29% - Channel 2:  8%
Channel 1: 30% - Channel 2:  7%
Channel 1: 45% - Channel 2:  9%
Channel 1: 16% - Channel 2:  8%
Channel 1: 34% - Channel 2:  7%
Channel 1:  8% - Channel 2:  6%
Channel 1: 11% - Channel 2: 12%
Channel 1: 15% - Channel 2:  7%
Channel 1: 16% - Channel 2:  7%
Channel 1: 49% - Channel 2:  8%
Channel 1: 36% - Channel 2: 23%
Channel 1: 15% - Channel 2:  6%
Channel 1: 29% - Channel 2: 14%
Channel 1:  7% - Channel 2:  7%
Channel 1: 51% - Channel 2:  8%
Channel 1: 11% - Channel 2:  9%
Channel 1: 17% - Channel 2:  9%
Channel 1: 12% - Channel 2: 12%
Channel 1: 30% - Channel 2: 16%
Channel 1: 34% - Channel 2:  7%
Channel 1:  6% - Channel 2:  6%
Channel 1: 12% - Channel 2: 13%
Channel 1:  8% - Channel 2:  6%
Channel 1: 60% - Channel 2:  9%
Channel 1: 10% - Channel 2:  6%
Channel 1: 22% - Channel 2: 14%
Channel 1: 56% - Channel 2:  8%
Channel 1: 12% - Channel 2:  6%
Channel 1: 16% - Channel 2:  9%
Channel 1:  8% - Channel 2:  7%
Channel 1: 50% - Channel 2: 14%
Channel 1: 15% - Channel 2:  9%
Channel 1: 70% - Channel 2:  7%
Channel 1: 11% - Channel 2:  9%
Channel 1:  9% - Channel 2:  7%
Channel 1: 13% - Channel 2:  8%
Channel 1:  9% - Channel 2: 10%
Channel 1: 12% - Channel 2: 10%
Channel 1: 14% - Channel 2:  8%
Channel 1: 26% - Channel 2:  7%
Channel 1: 37% - Channel 2: 11%
Channel 1:  6% - Channel 2:  6%
Channel 1: 15% - Channel 2:  5%
Channel 1: 11% - Channel 2:  6%
Channel 1: 15% - Channel 2:  9%
Channel 1: 30% - Channel 2:  9%
Channel 1: 10% - Channel 2: 27%
Channel 1: 13% - Channel 2: 10%
Channel 1: 51% - Channel 2: 16%
Channel 1: 50% - Channel 2: 13%
Channel 1: 13% - Channel 2:  8%
Channel 1: 31% - Channel 2: 10%
Channel 1: 14% - Channel 2: 31%
Channel 1: 12% - Channel 2: 10%
Channel 1: 31% - Channel 2: 21%
Channel 1: 12% - Channel 2: 14%
Channel 1: 13% - Channel 2: 11%
Channel 1: 19% - Channel 2:  9%
Channel 1: 17% - Channel 2:  8%
Channel 1: 24% - Channel 2:  7%
Channel 1: 34% - Channel 2:  8%
Channel 1: 20% - Channel 2: 12%
Channel 1: 17% - Channel 2: 11%
Channel 1: 44% - Channel 2: 13%
Channel 1: 18% - Channel 2:  8%
Channel 1: 12% - Channel 2: 18%
Channel 1: 12% - Channel 2: 12%
Channel 1: 13% - Channel 2: 13%
Channel 1: 16% - Channel 2: 10%
Channel 1: 40% - Channel 2: 12%
Channel 1: 47% - Channel 2: 10%
Channel 1: 12% - Channel 2:  8%
Channel 1: 30% - Channel 2: 14%
Channel 1: 29% - Channel 2: 16%
Channel 1: 33% - Channel 2: 11%
Channel 1: 29% - Channel 2: 14%
Channel 1: 15% - Channel 2:  9%
Channel 1:  7% - Channel 2:  7%
Channel 1: 12% - Channel 2: 10%
Channel 1:  8% - Channel 2:  7%
Channel 1: 27% - Channel 2: 14%
Channel 1: 46% - Channel 2: 13%
Channel 1: 29% - Channel 2:  8%
Channel 1: 11% - Channel 2:  6%
Channel 1: 15% - Channel 2: 10%
Channel 1: 31% - Channel 2: 10%
Channel 1: 13% - Channel 2:  7%
Channel 1:  8% - Channel 2:  6%
Channel 1: 62% - Channel 2:  8%
Channel 1: 14% - Channel 2:  7%
Channel 1: 45% - Channel 2: 10%
Channel 1: 50% - Channel 2: 10%
Channel 1: 28% - Channel 2:  9%
Channel 1:  6% - Channel 2:  7%
Channel 1: 11% - Channel 2:  8%
Channel 1: 50% - Channel 2:  9%
Channel 1:  6% - Channel 2:  6%
Channel 1: 57% - Channel 2:  7%
Channel 1:  7% - Channel 2:  6%
Channel 1: 49% - Channel 2: 10%
Channel 1: 13% - Channel 2: 10%
Channel 1: 14% - Channel 2: 14%
Channel 1: 14% - Channel 2:  9%
Channel 1: 16% - Channel 2: 10%
Channel 1: 17% - Channel 2: 17%
Channel 1: 58% - Channel 2: 11%
Channel 1: 44% - Channel 2: 15%
Channel 1: 61% - Channel 2: 25%
Channel 1: 49% - Channel 2: 34%
Channel 1: 41% - Channel 2: 49%
Channel 1: 55% - Channel 2: 62%
Channel 1: 36% - Channel 2: 41%
Channel 1: 51% - Channel 2: 44%
Channel 1: 57% - Channel 2: 13%
Channel 1: 32% - Channel 2: 24%
Channel 1: 10% - Channel 2:  9%
Channel 1: 10% - Channel 2:  7%
Channel 1: 12% - Channel 2:  7%
Channel 1: 23% - Channel 2:  8%
Channel 1: 15% - Channel 2:  7%
Channel 1: 12% - Channel 2:  9%
Channel 1: 15% - Channel 2:  9%
Channel 1: 50% - Channel 2: 14%
Channel 1: 32% - Channel 2: 15%
Channel 1: 14% - Channel 2: 12%
Channel 1: 13% - Channel 2: 10%
Channel 1: 57% - Channel 2: 10%
Channel 1: 57% - Channel 2: 12%
Channel 1: 27% - Channel 2: 11%
Channel 1: 11% - Channel 2:  8%
Channel 1: 15% - Channel 2: 10%
Channel 1: 59% - Channel 2:  9%
Channel 1: 50% - Channel 2: 10%
Channel 1: 48% - Channel 2: 12%
Channel 1: 69% - Channel 2: 13%
Channel 1: 40% - Channel 2: 15%
Channel 1: 15% - Channel 2:  9%
Channel 1: 18% - Channel 2: 18%
Channel 1: 16% - Channel 2: 10%
Channel 1: 16% - Channel 2: 11%
Channel 1: 16% - Channel 2: 12%
Channel 1: 33% - Channel 2: 12%
Channel 1: 12% - Channel 2:  9%
Channel 1: 12% - Channel 2: 13%
Channel 1: 12% - Channel 2:  9%
Channel 1: 13% - Channel 2:  9%
Channel 1: 14% - Channel 2:  9%
Channel 1: 26% - Channel 2:  9%
Channel 1: 20% - Channel 2: 13%
Channel 1: 14% - Channel 2:  9%
Channel 1: 11% - Channel 2: 10%
Channel 1: 13% - Channel 2: 10%
Channel 1: 11% - Channel 2: 11%
Channel 1: 10% - Channel 2: 10%
Channel 1: 15% - Channel 2: 14%
Channel 1: 15% - Channel 2:  9%
Channel 1: 51% - Channel 2:  9%
Channel 1: 55% - Channel 2: 13%
Channel 1: 14% - Channel 2:  9%
Channel 1: 11% - Channel 2: 12%
Channel 1: 19% - Channel 2:  9%
Channel 1: 12% - Channel 2: 12%
Channel 1: 35% - Channel 2: 12%
Channel 1: 15% - Channel 2: 12%
Channel 1: 52% - Channel 2: 10%
Channel 1: 13% - Channel 2:  9%
Channel 1: 11% - Channel 2: 10%
Channel 1: 31% - Channel 2:  9%
Channel 1: 32% - Channel 2:  9%
Channel 1: 15% - Channel 2:  9%
Channel 1: 20% - Channel 2: 14%
Channel 1: 10% - Channel 2:  9%
Channel 1: 13% - Channel 2:  6%
Channel 1: 15% - Channel 2: 12%
Channel 1: 15% - Channel 2:  9%
Channel 1: 16% - Channel 2: 11%
Channel 1: 36% - Channel 2: 14%
Channel 1: 10% - Channel 2: 11%
Channel 1: 26% - Channel 2:  9%
Channel 1: 53% - Channel 2:  8%
Channel 1: 48% - Channel 2:  9%
Channel 1: 27% - Channel 2:  9%
Channel 1: 11% - Channel 2:  7%
Channel 1: 27% - Channel 2: 13%
Channel 1: 10% - Channel 2:  6%
Channel 1: 33% - Channel 2: 12%
Channel 1: 13% - Channel 2:  7%
Channel 1:  9% - Channel 2:  7%
Channel 1: 15% - Channel 2: 17%
Channel 1:  9% - Channel 2: 12%
Channel 1: 54% - Channel 2:  8%
Channel 1:  7% - Channel 2:  8%
Channel 1: 53% - Channel 2:  9%
Channel 1:  8% - Channel 2:  6%
Channel 1: 11% - Channel 2: 20%
Channel 1:  9% - Channel 2:  7%
Channel 1: 30% - Channel 2:  8%
Channel 1: 18% - Channel 2:  7%
Channel 1:  7% - Channel 2:  7%
Channel 1: 13% - Channel 2: 10%
Channel 1:  9% - Channel 2:  9%
Channel 1: 11% - Channel 2:  7%
Channel 1: 60% - Channel 2: 17%
Channel 1:  8% - Channel 2:  8%
Channel 1: 14% - Channel 2:  5%
Channel 1: 11% - Channel 2:  5%
Channel 1: 30% - Channel 2:  8%
Channel 1:  8% - Channel 2:  7%
Channel 1:  6% - Channel 2:  6%
Channel 1: 44% - Channel 2: 17%
Channel 1: 16% - Channel 2:  8%
Channel 1: 14% - Channel 2: 12%
Channel 1: 32% - Channel 2: 15%
Channel 1: 12% - Channel 2: 11%
Channel 1: 10% - Channel 2: 10%
Channel 1: 46% - Channel 2:  8%
Channel 1:  6% - Channel 2:  8%
Channel 1: 12% - Channel 2: 10%
Channel 1: 10% - Channel 2:  9%
Channel 1: 11% - Channel 2:  8%
Channel 1:  6% - Channel 2:  6%
Channel 1: 10% - Channel 2: 12%
Channel 1: 10% - Channel 2:  9%
Channel 1: 10% - Channel 2:  7%
Channel 1:  9% - Channel 2:  6%
Channel 1:  9% - Channel 2:  8%
Channel 1: 29% - Channel 2: 10%
Channel 1: 12% - Channel 2:  9%
Channel 1:  7% - Channel 2:  6%
Channel 1: 10% - Channel 2:  7%
Channel 1: 10% - Channel 2: 11%
Channel 1:  9% - Channel 2:  8%
Channel 1: 32% - Channel 2:  7%
Channel 1: 15% - Channel 2:  9%
Channel 1: 12% - Channel 2:  7%
Channel 1: 14% - Channel 2: 10%
Channel 1: 33% - Channel 2: 11%
Channel 1: 12% - Channel 2:  7%
Channel 1: 11% - Channel 2: 21%
Channel 1: 57% - Channel 2: 12%
Channel 1: 35% - Channel 2: 11%
Channel 1: 43% - Channel 2: 17%
Channel 1: 52% - Channel 2: 12%
Channel 1: 28% - Channel 2:  9%
Channel 1: 13% - Channel 2: 11%
Channel 1: 48% - Channel 2: 14%
Channel 1: 53% - Channel 2: 13%
Channel 1: 55% - Channel 2: 13%
Channel 1: 29% - Channel 2:  9%
Channel 1: 11% - Channel 2:  9%
Channel 1: 17% - Channel 2:  8%
Channel 1: 13% - Channel 2: 15%
Channel 1: 14% - Channel 2:  9%
Channel 1: 12% - Channel 2: 13%
Channel 1: 16% - Channel 2:  8%
Channel 1:  7% - Channel 2:  7%
Channel 1: 57% - Channel 2: 15%
Channel 1: 29% - Channel 2:  8%
Channel 1: 38% - Channel 2: 16%
Channel 1: 52% - Channel 2:  9%
Channel 1: 11% - Channel 2:  6%
Channel 1:  9% - Channel 2:  7%
Channel 1: 17% - Channel 2:  7%
Channel 1: 11% - Channel 2:  8%
Channel 1: 24% - Channel 2:  9%
Channel 1: 55% - Channel 2:  7%
Channel 1: 43% - Channel 2: 18%
Channel 1: 46% - Channel 2: 16%
Channel 1: 10% - Channel 2:  6%
Channel 1:  8% - Channel 2:  7%
Channel 1: 51% - Channel 2: 13%
Channel 1: 12% - Channel 2: 12%
Channel 1: 14% - Channel 2:  6%
Channel 1: 19% - Channel 2: 15%
Channel 1: 11% - Channel 2:  8%
Channel 1:  6% - Channel 2:  6%
Channel 1: 13% - Channel 2:  8%
Channel 1: 16% - Channel 2:  8%
Channel 1:  6% - Channel 2:  5%
Channel 1:  7% - Channel 2:  6%
Channel 1: 11% - Channel 2: 15%
Channel 1: 14% - Channel 2:  6%
Channel 1: 13% - Channel 2:  8%
Channel 1:  6% - Channel 2:  8%
Channel 1: 12% - Channel 2:  9%
Channel 1:  7% - Channel 2:  7%
Channel 1: 32% - Channel 2:  8%
Channel 1: 15% - Channel 2:  9%
Channel 1: 34% - Channel 2:  8%
Channel 1: 32% - Channel 2:  8%
Channel 1: 42% - Channel 2: 12%
Channel 1: 36% - Channel 2: 15%
Channel 1: 20% - Channel 2:  9%
Channel 1:  7% - Channel 2: 10%
Channel 1: 49% - Channel 2: 17%
Channel 1: 33% - Channel 2:  7%
Channel 1: 12% - Channel 2: 16%
Channel 1: 11% - Channel 2: 12%
Channel 1: 15% - Channel 2:  9%
Channel 1: 29% - Channel 2: 10%
Channel 1: 53% - Channel 2:  9%
Channel 1: 54% - Channel 2: 10%
Channel 1: 10% - Channel 2:  7%
Channel 1: 14% - Channel 2:  7%
Channel 1: 52% - Channel 2:  8%
Channel 1: 13% - Channel 2:  7%
Channel 1: 10% - Channel 2:  9%
Channel 1:  8% - Channel 2: 21%
Channel 1:  6% - Channel 2:  7%
Channel 1: 11% - Channel 2:  9%
Channel 1: 43% - Channel 2:  7%
Channel 1: 11% - Channel 2:  7%
Channel 1: 10% - Channel 2:  6%
Channel 1: 13% - Channel 2: 10%
Channel 1: 32% - Channel 2: 10%
Channel 1: 10% - Channel 2: 15%
Channel 1:  6% - Channel 2:  6%
Channel 1: 14% - Channel 2:  7%
Channel 1: 15% - Channel 2: 29%
Channel 1: 28% - Channel 2:  8%
Channel 1: 52% - Channel 2:  8%
Channel 1: 30% - Channel 2:  9%
Channel 1:  7% - Channel 2: 10%
Channel 1:  9% - Channel 2:  7%
Channel 1: 51% - Channel 2:  8%
Channel 1:  9% - Channel 2:  7%
Channel 1: 11% - Channel 2:  6%
Channel 1: 20% - Channel 2: 11%
Channel 1: 16% - Channel 2:  7%
Channel 1: 12% - Channel 2:  8%
Channel 1: 12% - Channel 2: 10%
Channel 1: 10% - Channel 2:  8%
Channel 1: 28% - Channel 2: 11%
Channel 1: 36% - Channel 2:  7%
Channel 1:  9% - Channel 2:  7%
Channel 1: 15% - Channel 2:  6%
Channel 1:  6% - Channel 2:  6%
Channel 1:  6% - Channel 2:  6%
Channel 1:  8% - Channel 2:  6%
Channel 1: 54% - Channel 2:  9%
Channel 1: 11% - Channel 2:  7%
Channel 1:  8% - Channel 2:  5%
Channel 1:  5% - Channel 2:  5%
Channel 1:  5% - Channel 2:  6%
Channel 1:  8% - Channel 2:  6%
Channel 1: 13% - Channel 2:  8%
Channel 1:  6% - Channel 2:  5%
Channel 1:  7% - Channel 2:  5%
Channel 1:  9% - Channel 2:  8%
Channel 1: 10% - Channel 2:  6%
Channel 1: 14% - Channel 2: 25%
Channel 1: 13% - Channel 2: 12%
Channel 1: 13% - Channel 2:  8%
Channel 1: 47% - Channel 2:  9%
Channel 1: 14% - Channel 2: 18%
Channel 1:  8% - Channel 2:  6%
Channel 1: 31% - Channel 2: 12%
Channel 1: 55% - Channel 2:  8%
Channel 1:  9% - Channel 2: 10%
Channel 1: 13% - Channel 2:  6%
Channel 1: 30% - Channel 2:  6%
Channel 1: 10% - Channel 2:  8%
Channel 1:  9% - Channel 2:  5%
Channel 1: 50% - Channel 2:  9%
Channel 1: 53% - Channel 2: 11%
Channel 1: 11% - Channel 2:  9%
Channel 1: 19% - Channel 2:  6%
Channel 1:  7% - Channel 2: 10%
Channel 1: 34% - Channel 2: 16%
Channel 1: 13% - Channel 2: 11%
Channel 1: 12% - Channel 2:  8%
Channel 1: 17% - Channel 2:  7%
Channel 1: 15% - Channel 2:  8%
Channel 1:  7% - Channel 2:  8%
Channel 1: 10% - Channel 2:  5%
Channel 1: 35% - Channel 2: 12%
Channel 1: 31% - Channel 2:  9%
Channel 1: 51% - Channel 2:  9%
Channel 1: 10% - Channel 2: 24%
Channel 1:  8% - Channel 2: 10%
Channel 1: 13% - Channel 2:  8%
Channel 1: 21% - Channel 2: 13%
Channel 1: 56% - Channel 2:  7%
Channel 1: 14% - Channel 2:  6%
Channel 1:  6% - Channel 2:  5%
Channel 1:  5% - Channel 2:  6%
Channel 1:  6% - Channel 2:  6%
Channel 1:  6% - Channel 2:  5%
Channel 1: 10% - Channel 2:  6%
Channel 1:  9% - Channel 2:  9%
Channel 1: 10% - Channel 2:  7%
Channel 1: 27% - Channel 2:  8%
Channel 1: 12% - Channel 2:  6%
Channel 1: 11% - Channel 2:  6%
Channel 1:  6% - Channel 2:  6%
Channel 1: 43% - Channel 2:  8%
Channel 1:  4% - Channel 2:  4%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Channel 1:  3% - Channel 2:  3%
Last edited by Christian_Bylund on 30 Apr 2023 10:19, edited 1 time in total.
Reason: Output as code.

User avatar
Christian_Bylund
Posts: 246
Joined: 07 Mar 2015 18:09

Re: How to improve knock detection?

Post by Christian_Bylund » 30 Apr 2023 10:50

Hello!
knockretard wrote:
29 Apr 2023 12:44
It was easy to do because your manual is very good.
Thank you, it seems you have understood it very good!
knockretard wrote:
29 Apr 2023 12:44
Question 1: Does this look correct? I'm a little surprised that results aren't consistent between both sensors. On this V8 they are mounted on the outside of the iron block, one on each side of the v8.
I agree with you, it looks a bit asymmetric. Have you tried swapping the sensors to see if it follows the sensor or if it is the actual reading? Make sure the sensor is mounted on a good plane and clean surface.
Referencing the datasheet of the sensor.
knockretard wrote:
29 Apr 2023 12:44
Question 2: how do I know whether I should adjust the gain or KNOCK_THRESHOLD_LEVEL?
If you reach the KNOCK_THRESHOLD_LEVEL without the engine knocking I would reduce the gain. Often you want to know what is your safe level that you do not want to pass. Note, that you are a bit limited without engine speed.

There are plenty of videos discussion threshold levels, here is one example at 5:00.

Hope it helps.
Best Regards,
Christian Bylund
Bylund Automotive AB

DaveK
Posts: 8
Joined: 12 Feb 2019 10:11

Re: How to improve knock detection?

Post by DaveK » 07 May 2023 15:00

Hi knockretard,
Just wanted to also raise the topic of mounting torque.
I assume you are aware of this anyway, but i wanted to add this for other readers of your post.
Make sure that both sensors are torqued to the recommended spec of 20 + or - 5 Nm.
Also try to use bolts or studs made from the same metal properties, EG: Don't use one 316 grade stainless bolt and a mild steel bolt on the other sensor.
Regards
Dave.

Post Reply
